| Article number: | LE37161 |
| Availability: | In stock (24) |
| Delivery time: | 1 to 2 days |
DESCRIPTION

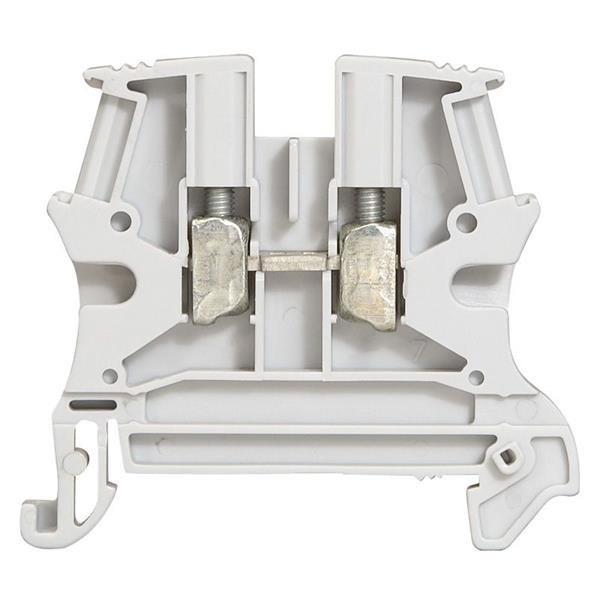

Screw terminal 1 connection 4mm² (pitch 6mm), gray - Viking 3
Connectable conductor cross section fine wire without wire end sleeve: 0.25mm² - 6mm²
Connectable conductor cross section fine wire with wire end sleeve: 0.25mm² - 4mm²
Connectable conductor cross-section single-wire: 0.25mm² - 6mm²
Connectable conductor cross-section multi-wire: 0.25mm² - 4mm²
Nom. (measuring) current In: 32A
Nominal voltage: 800V
Type of electrical connection 1: Screw connection
Electrical connection type 2: Screw connection
Connection position: Sideways
Number of connection levels: 1
Number of terminal positions per connection level: 2
Mounting method: DIN rail 35mm
Insulation body material: Thermoplastic
Operating temperature: -5 ° C - 40 ° C
Flammability class insulation material according to UL 94: V2
Width / grid size: 6mm
Height at lowest possible mounting height: 46.5mm
Length: 52.5mm
Explosion-tested version Ex-e: Yes
Cover plate necessary: Yes
Colour: Grey
Internally connected floors: No.
