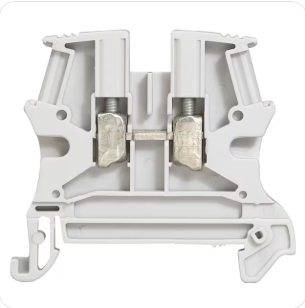

Screw terminal 1 connection 35mm² (pitch 15mm) - grey-Viking 3

Article number:	LE037165
Availability:	In stock (14)
Delivery time:	1 to 2 days

• Buy 20 for €4,10 each and save 8%

Series: Viking 3
Manufacturer: Legrand
Product group: 28
Commodity code: 85389099
EAN code: 3245060371654
Net weight: 0.051 Kg
Core range: No
Connectable conductor cross-section fine-stranded without wire end sleeve: 2.5 - 50 mm²
Connectable conductor cross-section fine-wire with wire end sleeve: 4 - 35 mm²
Connectable conductor cross-section single-wire: 2.5 - 50 mm²
Connectable conductor cross-section multi-wire: 4 - 35 mm²
Rated current In: 125 A
Rated voltage: 800 V
Electrical connection execution 1: Screw connection
Electrical connection execution 2: Screw connection
Number of connection levels: 1
Number of terminal positions per connection level: 2
Mounting method: DIN rail 35 mm
Insulating body material: Thermoplastic
Operating temperature range: 40 - -5 °C
Flammability class of insulation material according to UL 94: V2
Explosion-proof version 'Ex e': Yes
Closing plate required: Yes
Color: Gray
Internally connected floors: No
