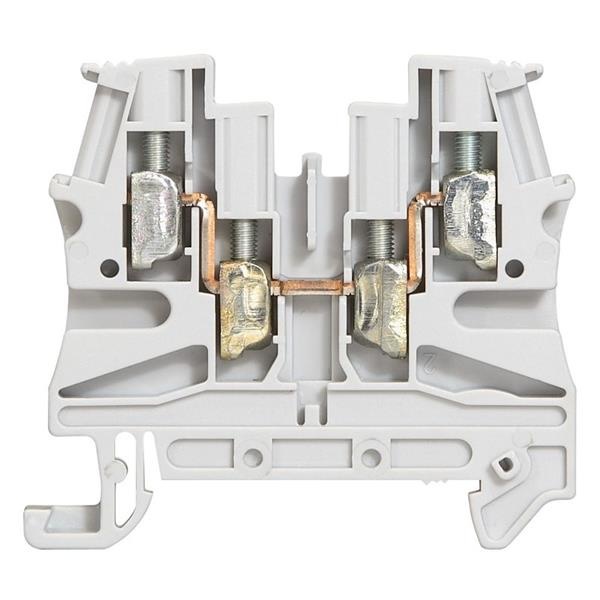

Screw terminal 1 connection - 2 IN/ 2 OUT 4 mm² (pitch 6mm), gray -

Article number:	LE37169
Availability:	In stock (21)
Delivery time:	1 to 2 days

DESCRIPTION

Screw terminal 1 connection - 2 IN/ 2 OUT 4 mm² (pitch 6mm), gray - Viking 3

Connectable conductor cross section fine wire without ferrule: 0.25mm² - 6mm² Connectable conductor cross section fine wire with ferrule: 0.25mm² - 4mm² Connectable conductor cross-section single-wire: 0.25mm² - 6mm² Connectable conductor cross section multi-wire: 0.25mm² - 4mm² Nom. (measuring) current In: 32A Rated voltage: 500V Electrical connection version 1: Screw connection Electrical connection version 2: Screw connection Connection position: Lateral Number of connection levels: 1 Number of terminal positions per connection level: 4 Mounting method: DIN rail 35mm Insulating body material: Thermoplastic Operating temperature: -5°C - 40°C Flammability class of insulation material according to UL 94: V2 Width/grid size: 6mm Height at lowest possible mounting height: 51.5mm Length: 57mm Explosion-tested version Ex-e: Yes Closing plate necessary: Yes Colour: Grey Internally connected floors: No
