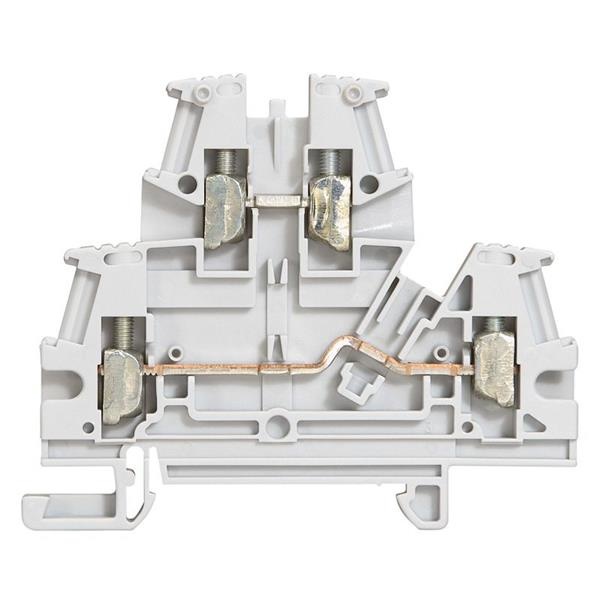

Screw terminal 2 connections - 2 levels - 4 mm² (pitch 6 mm), grey

Article number:	LE037168
Availability:	In stock (40)
Delivery time:	1 to 2 days

DESCRIPTION

Screw terminal 2 connections - 2 levels - 4 mm² (pitch 6 mm), grey - Viking 3

Connectable conductor cross-section fine wire without wire end sleeve: 0.25mm² - 6mm² Connectable conductor cross-section fine wire with wire end sleeve: 0.25mm² - 4mm² Connectable conductor cross-section single-wire: 0.25mm² - 6mm² Connectable conductor cross-section multi-wire: 0.25mm² - 4mm² Nom. (measuring) current In: 32A Nominal voltage: 500V Electrical connection execution 1: Screw connection Electrical connection execution 2: Screw connection Connection position: Sideways Mounting method: DIN rail 35mm Insulating body material: Thermoplastic Operating temperature: -5°C - 40°C Flammability class of insulation material according to UL 94: V2 Width/grid size: 6mm Height at lowest possible mounting height: 62.5mm Length: 75mm Closing plate required: Yes Base color: Gray
