| Article number: | LE037167 |
| Availability: | In stock (11) |
| Delivery time: | 1 to 2 days |
DESCRIPTION

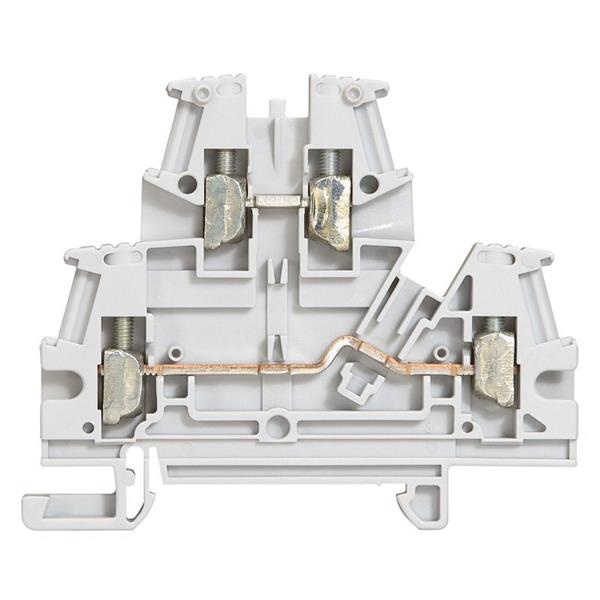

Screw clamp 2 connections - 2 levels - 2.5mm² (pitch 5mm), gray - Viking 3
Connectable conductor cross section fine wire without wire end sleeve: 0.25mm² - 4mm²
Connectable conductor cross section fine wire with wire end sleeve: 0.25mm² - 2.5mm²
Connectable conductor cross-section single-wire: 0.25mm² - 4mm²
Connectable conductor cross-section multi-wire: 0.25mm² - 2.5mm²
Nom. (measuring) current In: 24A
Nominal voltage: 500V
Type of electrical connection 1: Screw connection
Electrical connection type 2: Screw connection
Connection position: Sideways
Mounting method: DIN rail 35mm
Insulation body material: Thermoplastic
Operating temperature: -5 ° C - 40 ° C
Flammability class insulation material according to UL 94: V2
Width / grid size: 5mm
Height at lowest possible mounting height: 62.5mm
Length: 75mm
Cover plate necessary: Yes
Basic color: Gray
