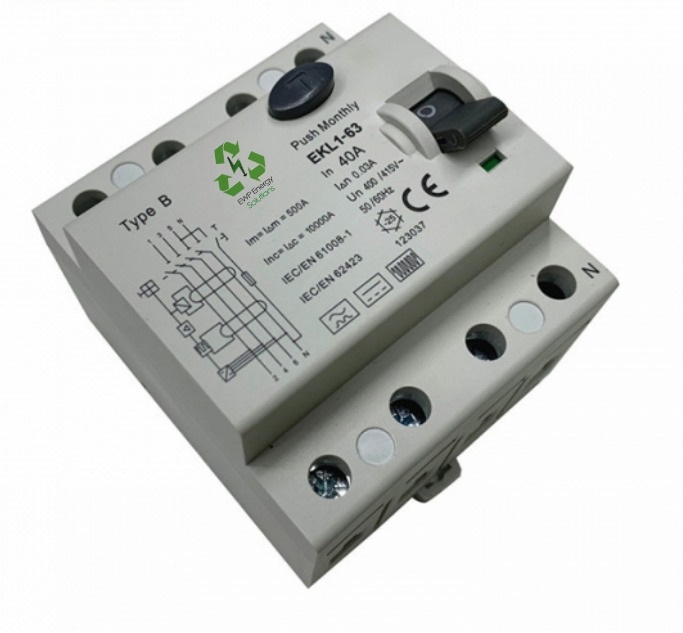

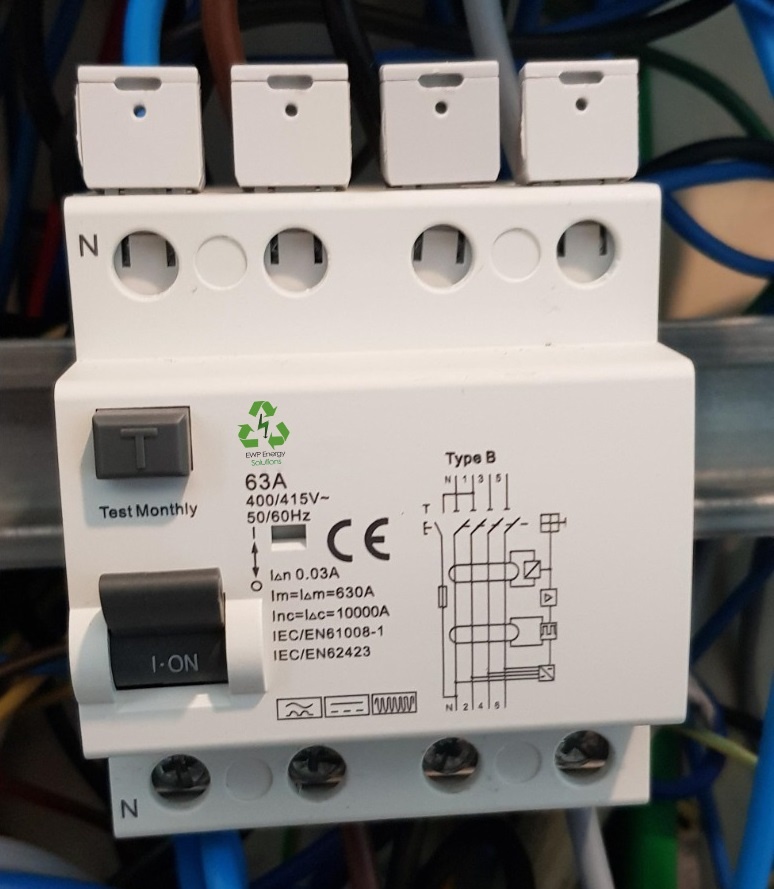

Earth leakage circuit breaker type B 4P 63A 10kA AC/DC 30mA or 300mA

Characteristics

• Type of leakage current: Type B
• Number of poles: 4P (3P+N)
• Rated voltage: 4P 415VAC
• Rated current: 63A
• Nom. fault current: 30mA or 300mA
• Nom. insulation voltage Ui: 500V
• Nom. impulse withstand voltage (Uimp): 4kV
• Mounting type: DIN rail
• Short-circuit resistance (Icw): 10kA
• Current surge capacity: 0.25kA
• Electrical life: 2000 cycles
• Mechanical life: 4000 cycles
• Frequency: 50/60 Hz
• Auxiliary device possible: no
• Degree of protection (IP): IP20
• Width in module units: 4P 4mod
• Ambient temperature during operation: -25°C - 40°C
• Connectable conductor cross-section multi-wire: 1mm² - 25mm²
• Connectable conductor cross section single wire: 1mm² - 35mm²
• CE
• IEC 61008-1:2010
• EN 61008-1:2012
• IEC 62423:2009
• EN 62423:2012
