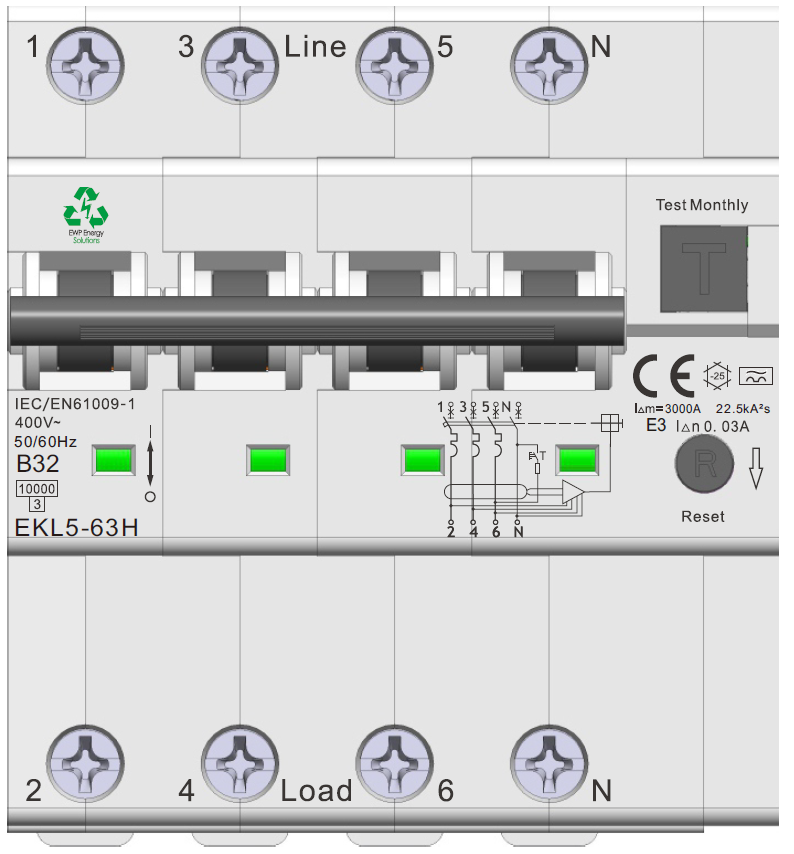

Residual current circuit breaker 4P 30mA Type A 20A curve B
This differential circuit breaker can be installed in front of any charging station with an internal 6mA DC earth leakage protection if it is connected with a cable with a section of at least 4mm².
You place this in the circuit just behind the main differential 300mA Type A or Type B.
- Total number of poles: 4
- Number of protected poles: 4
- Rated voltage: 400 V
- Rated current: 20 A
- Rated fault current: 0.03 A (30mA)
- Leakage current type: A
- Nominal breaking capacity according to EN 61009: 10 kA
- Rated breaking capacity IEC 60947-2: 6 kA
- Rated short-circuit breaking capacity Icn according to EN 61009-1: 6 kA
- Surge voltage resistance: 0.25 kA
- Voltage type: AC Frequency: 50 Hz Tripping characteristic: B
- Co-switching neutral: Yes
- With locking device: No
- Width in module units: 4
- Connectable conductor cross-section single-wire: 0.75 - 16 mm²
- Connectable conductor cross-section multi-wire: 0.75 - 10 mm²
CE certificate
