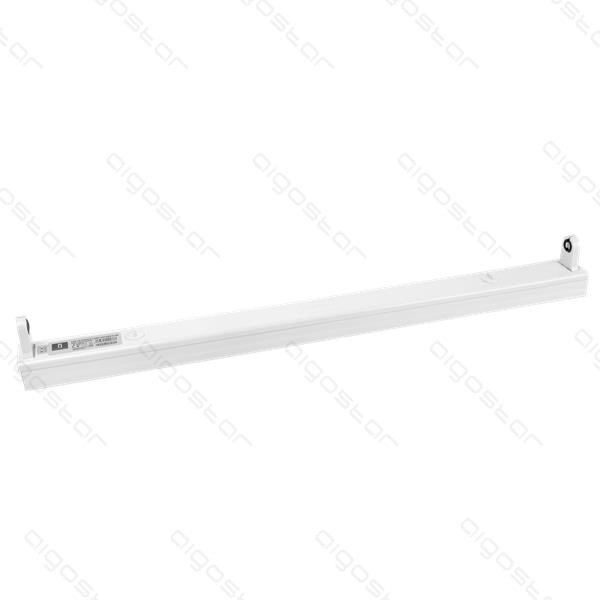

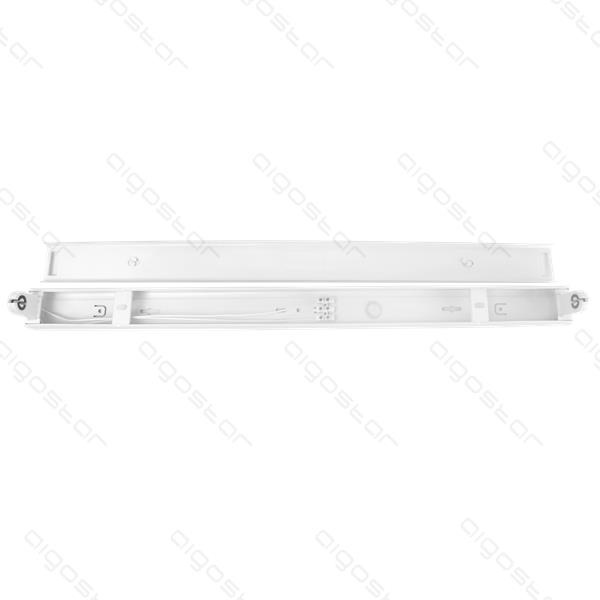

LED T8 SINGLE LAMP HOLDER 0.6 M Single input
When purchasing fixtures for LED tubes or the LED tubes themselves, you must take a few details into account. There is a single and a double input for both the fixtures and the LED tubes.
It is best to always choose the same input for the fixture and LED tube.
A double input fixture and a double input LED tube will always work safely.
A single LED tube cannot work in a double input fixture without a special bridge that you slide over the pins of the LED tube on the non-power side.
A double input LED tube can work in a single input fixture if you place the LED tube correctly in the fixture. If you do this the other way around, you will get a short circuit and this is therefore not recommended if, for example, someone later places the LED tube in the wrong direction in the fixture during work or replacement.
You can consult all options in the PDF below.
PDF: Connection diagram single/double input
PS: There are also Double ended input fixtures and LED tubes on the market. Here you need to connect L and N on each side of the fixture. The single or double input LED tubes will not work in these fixtures.
