| Article number: | LE22113 |
| Availability: | In stock (1) |
| Delivery time: | 1 to 2 days |
DESCRIPTION

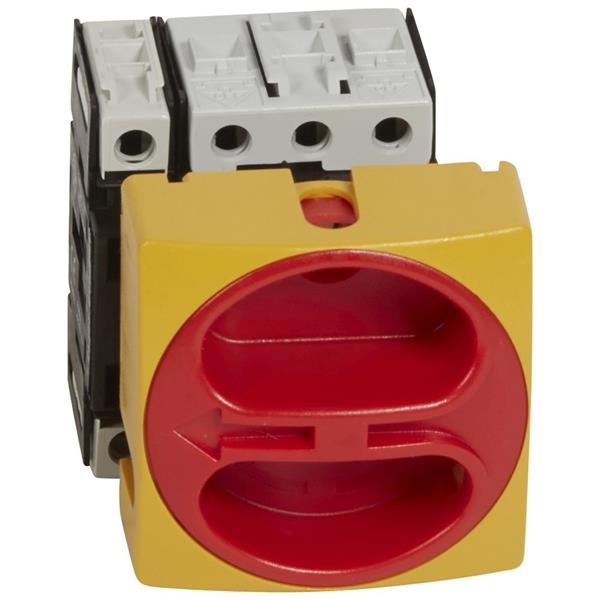

Complete load switch built-in lockable - 4p + neutral conductor - 32 A.
Version as main switch: Yes
Version as an operating switch: Yes
Version as a safety switch: Yes
Version as emergency stop device: No.
Version as reversing switch: No.
Max. nom. operating voltage Ue at AC: 400V
Operating voltage (measuring voltage): 690V - 690V
Nom. continuous current Iu: 32A
Nom. continuous current, AC-21, 400 V: 32A
Nom. power at AC-3, 400 V: 7.5kW
Permitted short-time current Icw: 1kA
Nom. power, AC-23, 400 V: 11kW
Switching capacity at 400 V: 12.8 kW
Conditional nom. short-circuit current Iq: 10kA
Number of poles: 4
Number of auxiliary contacts as normally closed contact: 0
Number of auxiliary contacts as normally open contact: 0
Number of auxiliary contacts as changeover contact: 0
Motor drive optional: No.
Motor drive integrated: No.
Trip coil optional: No.
Device construction type: Built-in device with fixed installation technology
Suitable for floor mounting: No.
Suitable for front mounting 4-hole: Yes
Suitable for central front mounting: No.
Control element color: Red
Design of the control element: Short rotary handle
Lockable: Yes
Main power circuit connection type: Screw connection
Protection degree front side (IP): IP65
