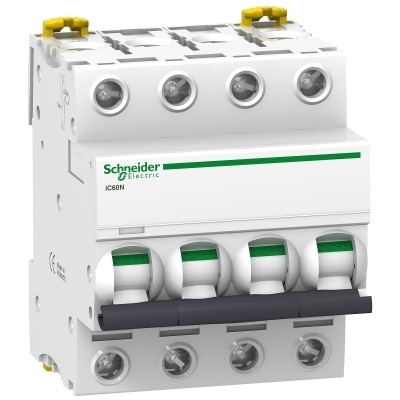

Automatic iC60N 4P 20A C 6kA

• Nom. breaking capacity: 6kA - 6kA
• Tripping characteristic: C.
• Number of poles (total): 4
• Number of protected poles: 4
• Nominal current: 20A
• Nominal voltage: 400V
• Nom. insulation voltage Ui: 500V
• Nom. impulse withstand voltage (Uimp): 6kV
• Nom. breaking capacity Icn EN 60898 at 230 V: 6kA
• Nom. breaking capacity Icn EN 60898 at 400 V: 6kA
• Nom. breaking capacity Icu IEC 60947-2 at 230 V: 20kA
• Nom. breaking capacity Icu IEC 60947-2 at 400 V: 10kA
• Voltage type: AC / DC
• Frequency: 50Hz - 60Hz
• Energy limitation class: 3
• Suitable for installation (stucco): No.
• Co-switching zero: No.
• Overvoltage category: 4
• Pollution degree: 3
• Side device possible: Yes
• Width in module units: 4
• Installation depth: 44.5mm
• Degree of protection (IP): IP20
• Ambient temperature for operation: 35 ° C - 70 ° C
• Connectable conductor cross-section multi-wire: 1mm² - 16mm²
• Connectable conductor cross-section single-wire: 1mm² - 25mm²
